Main structural features

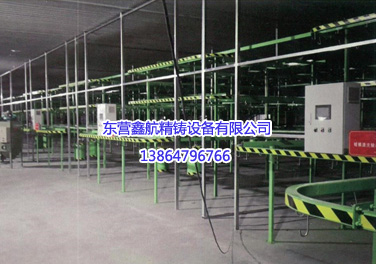

The XGX09 series shell drying line is mainly used for drying shells in precision casting of medium temperature mold materials, and can also be used as a conveying system in other industries to complete the free and flexible transportation of workpieces between workshops and processes. The drag length of dual power is ≤ 420 meters.
1. Composition of drying line:
The XGX09 series drying line consists of seven parts: conveyor chain, "C" - shaped track, dragging mechanism, tensioning mechanism, lubrication mechanism, support mechanism, and electronic control system.
2. Design of drying line:
(1) Design conditions:
① The user needs to provide our company with infrastructure conditions, indoor layout dimensions, and effective room height. ② Users are required to provide the maximum external dimensions and individual weight of precision castings within a certain period of time.
(2) Design status,
① General design floor height: 1.3 meters above ground.
② If the distance between the dipping and dewaxing areas is very close, the drying line should be designed with a pendant and a discharge port; If the distance between the slurry and dewaxing is far, separate the hanging and unloading ports of the drying line, that is, each line has two ports (one hanging port and one unloading port).
③ The total length of the line is determined by the number of shell groups produced per day and the drying time of each layer.
④ The linear speed is wireless variable speed, generally selected as 0.4m/min to 4m/min.
